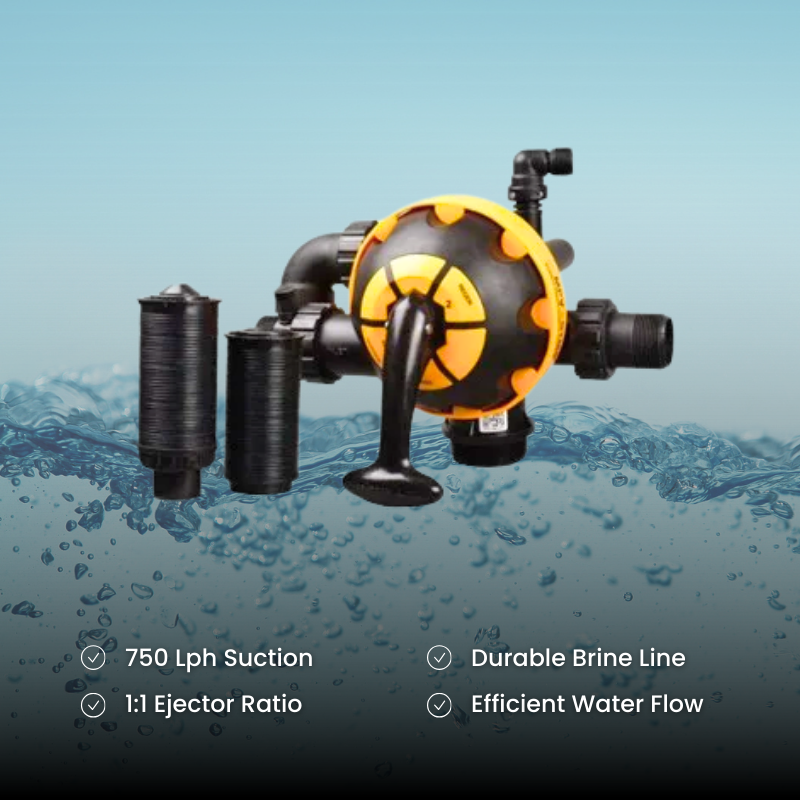

40 NB SOFTENER TM FF
- High Suction Capacity: 750 Lph at 2 kg/cm².
- Balanced Ejector Ratio: 1:1 for consistent performance.
- Durable Brine Line: 3/4″ BSP connection.
- Efficient Water Flow: Ensures optimal water treatment.
- Reliable Performance: Ideal for industrial/commercial use.
Description
The Ejector Suction System is designed to provide high efficiency in water treatment applications, ensuring optimal performance for various processes. With a powerful ejector suction rate of 750 Lph at 2 kg/cm², this system is capable of handling substantial water flow for enhanced functionality. It operates at a 1:1 ejector ratio, ensuring a balanced and consistent suction, which helps in achieving uniform performance across the system.
For robust and reliable connection, the system uses a 3/4″ BSP brine line, providing a secure and leak-free fit for seamless operation. This setup ensures smooth water flow during the suction process, making it suitable for a wide range of applications, including water purification and filtration processes.
The combination of high suction capacity, balanced ejector ratio, and secure brine line connection makes this ejector suction system an excellent choice for industrial and commercial uses, providing reliable and consistent performance.
Specifications
Specification | Details |
|---|---|
| Inlet / Outlet / Drain Connections | 1.5″ BSP |
| Valve Threading for Vessel Mounting | 2.5″ NPSM |
| Flow Rate | 6m 3 / hr @ 0.5 kg/ cm2 |
| Max. Operating Pressure | 5 kg / cm2 |
Additional for Softener
Specification | Details |
|---|---|
| Ejector Suction @2kg / cm2 | 750 Lph |
| Ejector Ratio | 1:1 |
| Brine Line | 3 / 4″ BSP |
