Description

Product Features

• Inbuilt ORP controller and transmitter.
• Fuzzy logic for accurate online pH control.
• Automatic dosing rate adjustment when there is change in feed pH.
• Air bleed arrangement built in on the pump head.
• Double ball NRVs ensure long life
• Wide operating voltage range
• Low level switch interlock facility available
• Relay output – potential free for alarm (Optional)
• RS485 output (optional)

Specifications

1. Doing pump

• Electrical supply 230V AC (+/-10%) 50Hz
• Suction tubing: 4/6mm LDPE or PTFE
• Discharge tubing : 4/6mm LDPE or PTFE
• Dosing Rate: Up to 10 LPH @4 Kg/sq cm

2. Sensor

• ORP range : 0 – 1000 mv
• Body material : Glass
• Maximum operating pressure: 5kg/cm2
• Mounting Thread: ¾” BSPM

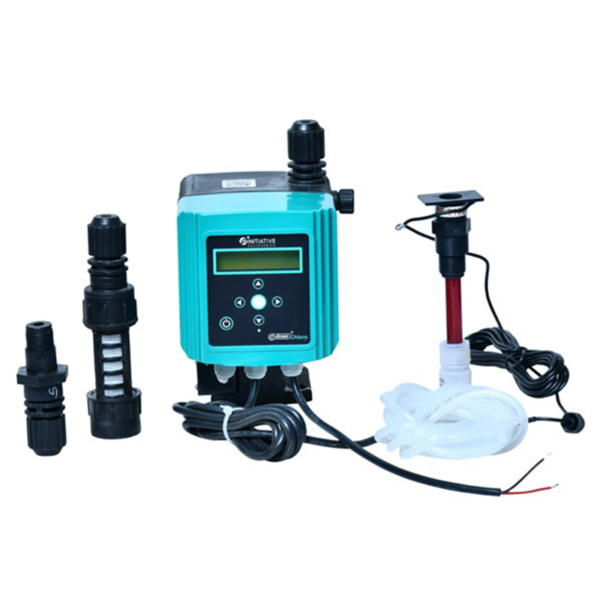

Scope of supply

• Metering pump
• 3 meter suction / discharge tubing
• Foot valve with strainer
• Injection valve (NRV)
• ORP sensor with 5 mtr cable
