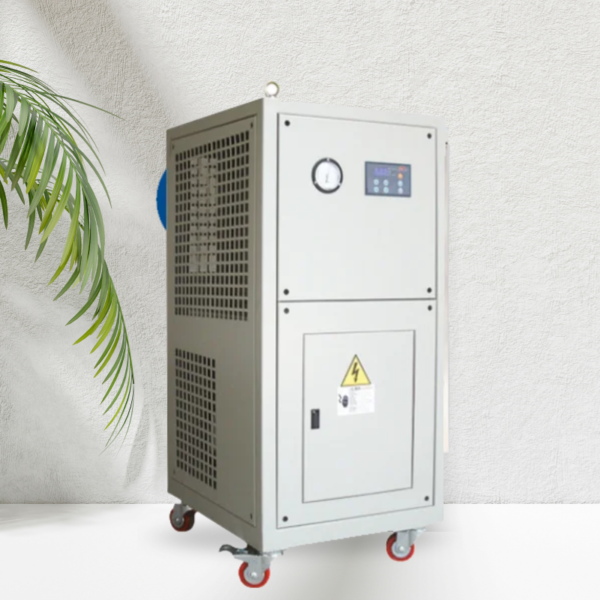

Industrial Water Cooler
- 1 Ton & 2 Ton Models: Hermetic + scroll compressor for powerful cooling.
- 80L & 150L Evaporator Tanks: Copper coil or shell and tube for efficient heat exchange.
- High-Efficiency Condenser: Low-noise axial fan with a powerful air volume.
- Advanced Safety Systems: Overcurrent, over-temperature, low coolant protection.
- Compact Design: Easy to fit into any industrial space.
Description
The Industrial Water Cooler is designed to provide efficient and reliable cooling solutions for a range of industrial applications. Available in two models, 1 Ton and 2 Ton, both utilize a hermetic + scroll compressor to deliver powerful and consistent cooling. The evaporator tank capacity ranges from 80 litres to 150 litres, designed with a copper coil or shell and tube system for enhanced heat exchange. The pump, with a 0.5 HP power rating and a maximum lift of 20 meters, ensures smooth water circulation. The high-efficiency aluminium finned coil condenser paired with a low-noise axial fan provides optimal airflow, with fan power ranging from 42W to 100W depending on the model.
These coolers are equipped with advanced safety features, including compressor inner protection, overcurrent protection, high/low-pressure protection, over-temperature protection, and more, ensuring the unit operates safely under all conditions. The system uses R22 or R407C refrigerants, offering excellent cooling performance. With a thermostatic expansion valve or capillary pipe control, the cooler maintains consistent performance even in fluctuating conditions.
The compact design ensures easy integration into industrial setups, with dimensions ranging from 600x600x1000 mm for the 1 Ton model, and 800x800x1000 mm for the 2 Ton model. Weighing between 100 kg and 150 kg, these coolers are built to withstand heavy-duty use, ensuring long-term reliability and performance in demanding environments.
Specifications
| COMPRESSOR | POWER | 1 TON | 2 TON |
|---|---|---|---|
| TYPE | HERMETIC + SCROLL | ||
| EVAPORATOR | CHILLER WATER CAPACITY | 80 LITERS | 150 LITERS |
| TANK VOLUME | 80 LITERS | 150 LITERS | |
| PIPE CONNECTION | 1 INCH | 2.5 INCH | |
| TYPE | TANK WITH COPPER COIL/SHELL AND TUBE | ||
| PUMP | POWER | 0.5 HP | 0.5 HP |
| MAX LIFT | 20 M | ||
| CONDENSER | MAX LIFT AIR VOLUME | 15000 m/h | 20000 m/h |
| FAN POWER | 42 W | 100 W | |
| TYPE | HIGH EFFICIENCY ALUMINIUM FINNED COIL BIG VOLUME LOW NOISE AXIL FAN | ||
TECHNICAL SPECIFICATION
| DIMENSIONS | L’W”H (IN MM) | 600X600X1000 | 800 X 800 X 1000 |
|---|---|---|---|
| NET WEIGHT | APPROX IN KG | 100 KG | 150 KG |
| REFRIGERANT | TYPE | R22/R407C | |
| CONTROL | THERMOSTATIC EXPANSION VALVE OR CAPILLARY PIPE |
||
| SAFETY DEVICES | COMPRESSOR INNER PROTECTION, OVER CURRENT PROTECTION, HIGH/LOW-PRESSURE PROTECTION, OVER TEMPERATURE PROTECTION, FLOW RATE PROTECTION, PHASE SEQUENCE/PHASE MISSING PROTECTION,LOW-LEVEL COOLANT PROTECTION, ANTI-FREEZING PROTECTION, EXHAUST OVERHEAT PROTECTION |
||
Key Features:
- Efficient Cooling Performance: Reliable cooling with 1 Ton or 2 Ton capacity options.
- Advanced Safety Mechanisms: Includes overcurrent, overtemperature, and anti-freeze protection.
- High-Quality Build: Copper coil or shell and tube design for better heat exchange.
- Compact & Durable: Fits easily into industrial spaces while providing long-lasting cooling solutions.
