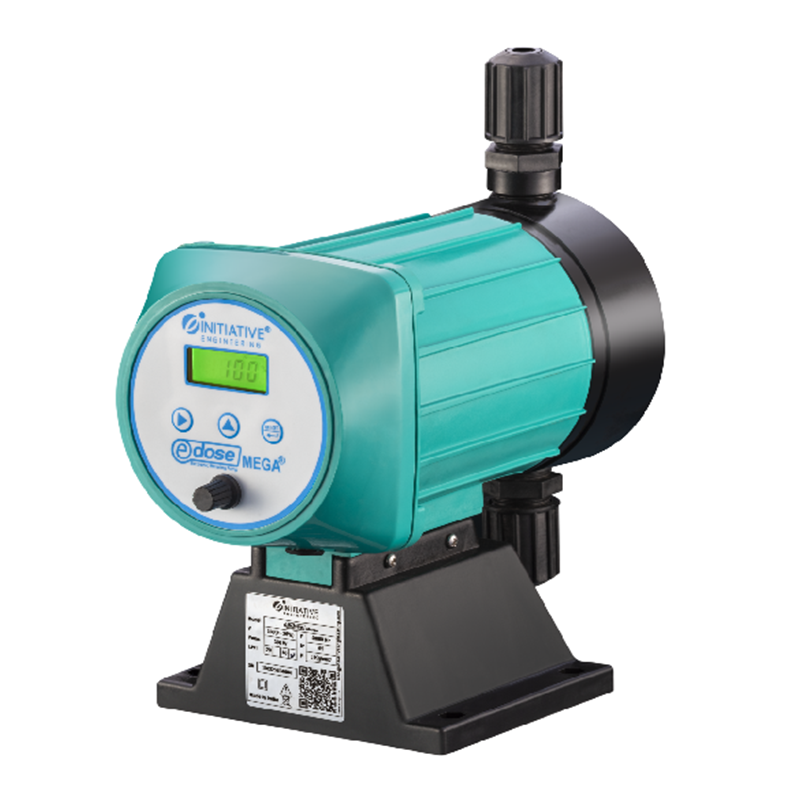

Description

Features

• Backlit LCD Display
• User-friendly knob linked with digital display for adjusting dosing frequency with facility of password lock
• Dosing head conveniently located next to front controls for easy maintenance access
• Built-in ARV with separate discharge point to prevent chemical spill on hands
• Double ball NRV
• Diaphragm made of solid PTFE to ensure maximum life
• Batch and Interval dosing features
• IP 65 Certified.

Technical Specifications

• Dosing rate @ 4 Kg/Cm² 1.5; 3.0; 6.0 & 10.0 LPH
• Suction/Discharge tubing 4/6 mm
• Frequency Up to 400 SPM
• Electrical 230 V AC, 50 Hz
• Power Consumption at 400 SPM 30 W.
