Description

Scale Prevention Media based on NAC Technology

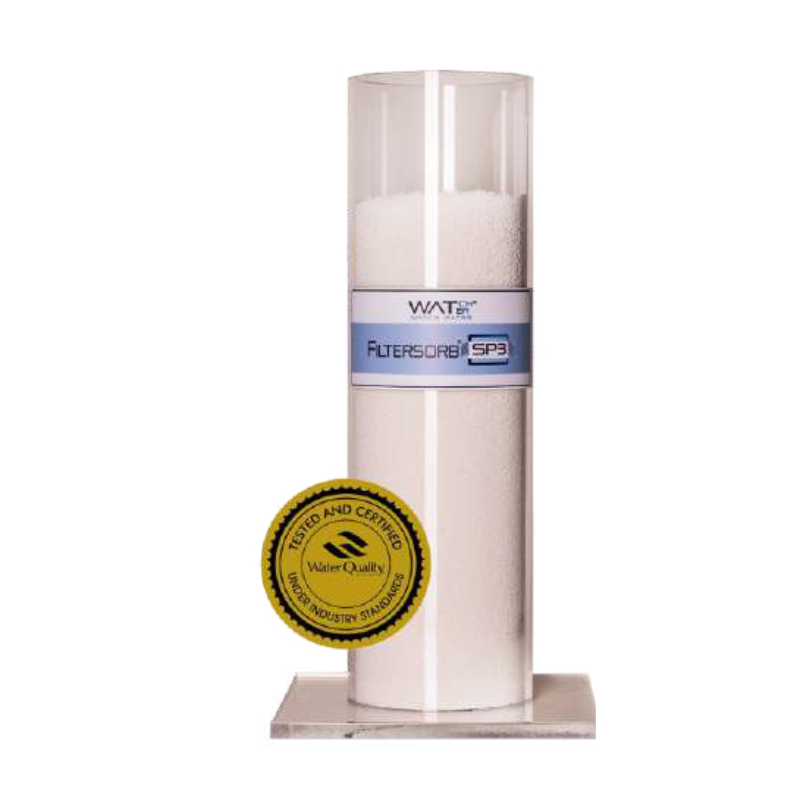

Watch Water core motivation for developing this product was to find an alternative to conventional ion exchange based water softeners, reverse osmosis or other chemical based systems that prevent scale. Recent restrictions placed upon the above mentioned technology lead to an environment friendly, cost effective solution for hard water, Watch Water FILTERSORB SP3. FILTERSORB SP3 completely takes care of the primary cause of scale forming cations viz. Ca2 + and Mg2+

WORKING PRINCIPLE

When the hard water under goes nucleation in the pressure vessel, the calcium bicarbonate Ca(HCO3)2 is transformed into aragonite form of calcium carbonate CaCO3 crystals. These crystals are formed through decomposition and crystallization process, forming very stable harmless crystals.

The following equation describes the reaction that occurs inside the pressure vessel when flow over grains of nucleation.

The name fragment “SP (Scale Prevention) 3” is to indicate this unique transformation of water hardness Ca(HCO3)2 into 3 components viz.

1) CaCO3 (micro-crystals)           2) CO2 (colloid)             3) H₂O (pure

In the pressure vessel, the equilibrium of carbonate species in water is changed, assisted by the driving force of stable crystal formation and therefore the reaction is pushed to the right. With this technology, as long as CO₂ is being removed the soluble Ca (HCO3)2 converts into insoluble calcium carbonate (CaCO₂) crystals.

The calcium carbonate crystals grow steadily. They are very stable and cannot dissolve (incapable of forming scale) in the water.

Glass grains crystallization sites provide increased nucleation sites for the formation of submicron sized CaCO, crystals. Hence this amazing process is called NUCLEATION ASSISTED CRYSTALLIZATION

APPLICATION

Home Appliances:

Faucets, water pipes, shower heads, shower cabins, toilets. All beverage systems, kitchen machines, dish washers, ice cubes, compact washers and dryers.

Boilers:

Hot water boilers, central heating boilers, combo mbo boilers, catering water boilers, boilers and pool heaters, commercial water heaters, industrial hot water boilers.

Major Appliances:

Central heating, air conditioners, water heaters, air humidifiers, coffee and tea makers, solar heating systems, water coolers.

Cooling towers:

Closed circuit cooling towers, open circuit cooling towers, concrete cooling towers, cross flow cooling towers.

Industrial appliances:

Winery, Car Washing, Diary Processing, Food & Beverages, Injection Molding, Irrigation, Nurseries, Reverse Osmosis pre-treatment etc

Other applications:

Irrigation, Swimming pools and SPA, Dairy Processing, Winery and Beverages, Planting and Gardening, Automobile Washing, Hotel, Restaurants and Institutions, Coffee and Tea-machines, Vending appliances, and many more.
