Description

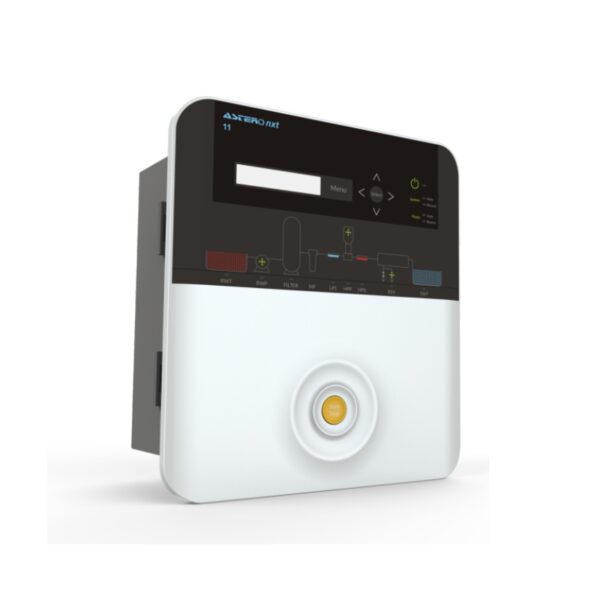

Next generation RO control panels loaded with high end features like bluetooth connectivity. Intutive user interface,
quick access to critical parameter settings etc. Beside all standard level, pressure and pump safeties. An improved
elegant design takes plant aesthetics to a higher level.

TECHNICAL FEATURES

KEY ATTRIBUTES
• INTUITIVE & PATENTED USER INTERFACE
• 13 key makes setting much simpler
• COMPLETE RO LOGIC PROGRAMMED
• Quick Access to critical settings
• Logical START/STOP with single key
• Different colored backlit to show plant status
• SINGLE LINE MIMIC DIAGRAM with 13 LEDs for I/O indication
• 16X2 ALPHANUMERIC LCD DISPLAY with colour changing feature
• Bluetooth connectivity plant status will be reflected on smart phone(Optional)
• Can pair with Android device for data monitoring and control

• EASY MOUNTING WITH NUT AND STUD
• FUSE FAILURE INDICATION
• LARGER POWER TERMINALS (6 Sq. mm) for easy wiring
• REMOVABLE TERMINALS for input
• AUTOMATICALLY FLUSHES the membrane during starting, stopping and after a set period,
takes care of required MOTOR PROTECTION such as overload/single phasing/dry running
• AUTO/MANUAL FACILITY (even in manual mode, motor protection doesn’t get bypassed)
• Equipped to SUIT AUTO-MULTIPORT VALVE in pre-treatment
• in built protection against OVER & UNDER VOLTAGE
• NOTIFICATION FOR FILTER BACKWASH DUE & PLANT SERVICING DUE
• TIME LOCK FACILITY, PANEL ITSELF CAN WORK AS RECOVERY AGENT
• INBUILT FLOW RATE INDICATION WITH TOTALISER
• INBUILT OF HOUR COUNTER
• INBUILT COND/TDS INDICATOR

PARAMETER
User can connect the android device with panel and monitor/control below parameter.
• Plant START/STOP

• SYSTEM AUTO/MANUAL

• Conductivity/TDS
• RO Permeate Volume

• Floaty AUTO/BYPASS

• RO Operation Hour
• RO Permeate Flow Rate

• RO Inlet Flow Rate
• Plant Status

• Feed Pump Current

• High Pressure Pump Current
