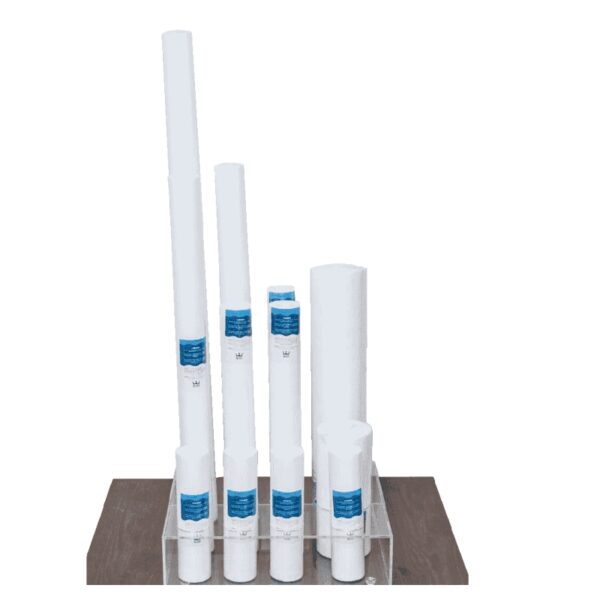

Meltblown PP Micron Filters
Advantages
- Use of Virgin Grade PP Resin. This makes the cartridge suitable for drinking water and other food and beverage industry
- International Standard Dimensions
- Use of “3 Layer Gradient density Construction” for low pressure drop and longer life providing complete utilisation of cartridge
Description
The Meltblown PP Micron Cartridge Filters have emerged as another very popular product in the depth filtration category. Molten PP fibres are impinged on a continuously rotating cylindrical mandrel. The temperature at which the PP is melted defines the micron rating. The cartridges are manufactured in different weights, which changes its retention efficiency. Moreover these cartridges are manufactured in 3 layers to provide for gradient filtration, keeping the pressure drop in check.
Specifications
| Outer Diameter | 63 ± 1mm (Standard Cartridges) |
| 112 ± 1mm (Big Blue Cartridges) | |
| Inner Diameter | 28 ± 0.5mm |
| Length | 10 / 20 / 30 / 40 / 50 inches (Standard Cartridges) |
| 10 / 20 inches (Big Blue Cartridges) | |
| Micron Rating | 0.5 / 1 / 5 / 10 / 25 Nominal |
| Efficiency | 88 to 90% |
| Temperature | 75 deg C Continuous |
| Flow Rate | 1,000 LPH per 10 inches at a min line pressure of 2 Bar (Standard Cartridges) |
| 4,000 LPH per 10 inches at a min line pressure of 2 Bar ( Big Blue Cartridges) | |
| Applications | R.O. Pretreatment / Food & Beverages / Chemical / Industrial Effluent |
| Dairy / Pharmaceutical / Electroplating / Paints / Aquaculture etc |
