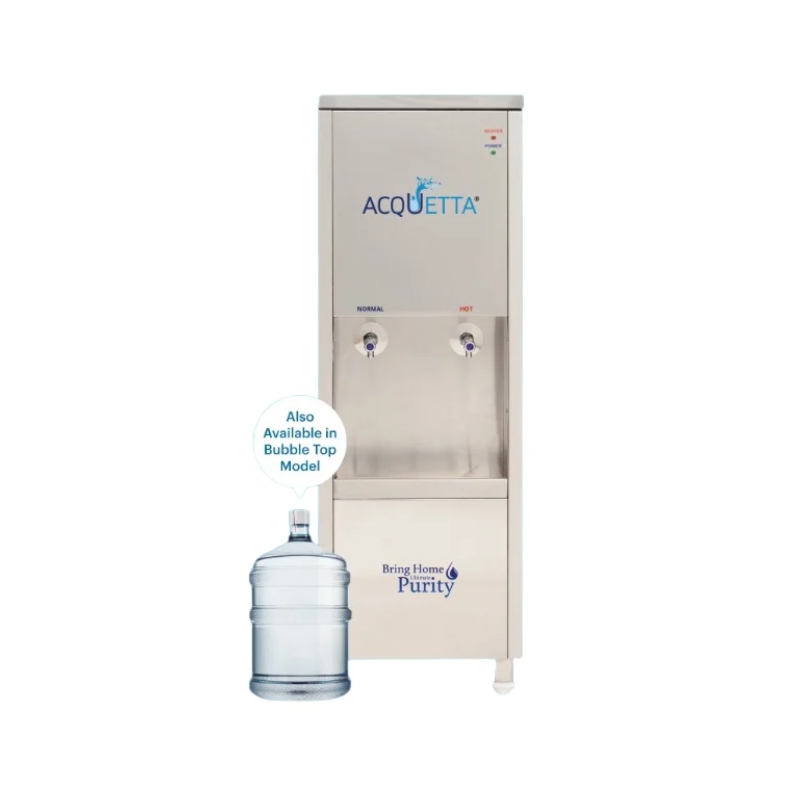

SS NORMAL COLD & HOT DISPENSER
TECHNICAL SPECIFICATION
| PURIFICATION TECHNOLOGY | RO/UV/UF/OZONE ( As per CC) |
|---|---|
| MOC HOUSING | SS 202 OR 304 (0.8 mm SHEET) As per CC |
| MOC WATER TANK (N, C, H) | SS 304 (0.8 mm SHEET) |
| MOC LEGS | SS 202 ( 2mm Rod ) WITH NYLON BUSH |
| MOC FAUCETS | Brass Chromium Plated |
| MOC DRIP TRAY | SS 304 |
| COOLING TANK INSULATION | PUF/EFE |
Need Help?
Description
| NHC80 | NHC110 | NHC130 | NHC250 | |
|---|---|---|---|---|
| FLOW RATE (IN LITERS/HR) | 80 | 110 | 130 | 250 |
| STORAGE TANK CAPACITY NORMAL WATER COLD WATER HOT WATER |
14 14 3 |
20 20 3 |
40 40 5 |
50 50 5 |
| DIMENSIONS IN L*W*H ( IN mm) | 430*375* 1350 | 500*450* 1350 | 500*550* 1500 | 700*600* 1500 |
| NO.OF FAUCETS | 3 | 3 | 3 | 3 or 7 |
| NO. OF POWER CHORDS | 3 | 3 | 3 | 3 |
| POWER SUPPLY | 180 to 240 Volts( AC 50 Hz) | |||
TECHNICAL SPECIFICATION
| PURIFICATION TECHNOLOGY | RO/UV/UF/OZONE ( As per CC) |
|---|---|
| MOC HOUSING | SS 202 OR 304 (0.8 mm SHEET) As per CC |
| MOC WATER TANK (N, C, H) | SS 304 (0.8 mm SHEET) |
| MOC LEGS | SS 202 ( 2mm Rod ) WITH NYLON BUSH |
| MOC FAUCETS | Brass Chromium Plated |
| MOC DRIP TRAY | SS 304 |
| COOLING TANK INSULATION | PUF/EFE |
| COMPRESSOR MAKE | TECUMSEH/EMERSON |
| COMPRESSOR REFRIGERANT | R-134a |
| COLD TEMPERATURE RANGE | 16 C – 33 C |
| POWER CONSUMPTION HOT | 1500 WATTS |
| HOT TEMPERATURE RANGE | 40 C – 60 C ( Thermostat adjustable ) |
| HEATER TECHNOLOGY | DOUBLE THERMOSTAT TECHNOLOGY |
| HEATER LOW WATER LEVEL PROCTECTION | PROVIDED |
| STEAM VENT | PROVIDED |
